Integrated FET DC/DC converter with 22V maximum input voltage and 10A maximum output current. Features ultra-low quiescent current of 100µA and adjustable output voltage from 1.5V to 2V. Operates across a temperature range of -10°C to 85°C. Packaged in a 3.5mm x 4.5mm x 900µm VQFN surface mount package, supplied on tape and reel.
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS51362RVET technical specifications.
General
| Package/Case | VQFN |
| Lead Free | Contains Lead |
| Length | 4.5mm |
| Max Input Voltage | 22V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 10A |
| Max Output Voltage | 2V |
| Min Output Voltage | 1.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 10A |
| Output Type | Adjustable (Programmable), Adjustable |
| Output Voltage | 2V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Quiescent Current | 100uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | D-CAP2™ |
| Synchronous Rectifier | Yes |
| Thickness | 900um |
| Width | 3.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS51362RVET Datasheet
Download the complete datasheet for Texas Instruments TPS51362RVET to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

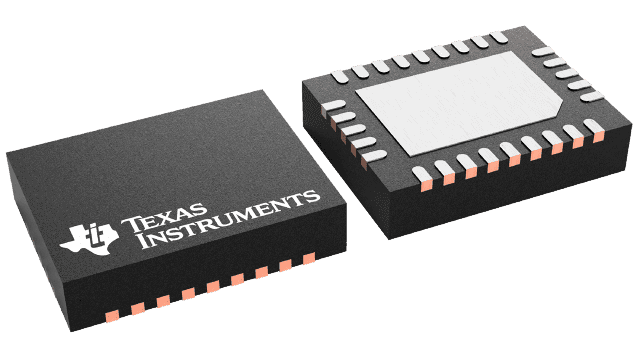

Product Images
