Texas Instruments
TPS51463RGER
3.3-V/5-V Input, D-CAP+™ Mode Synchronous Step-Down Integrated FETs Converter with 2-Bit VID 24-VQFN -40 to 85
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS51463RGER technical specifications.
General
Package/Case
VQFN
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
5A
Min Output Voltage
900mV
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
5V
Output Configuration
Positive
Output Current
5A
Output Type
Adjustable
Output Voltage
2V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
1.6mA
RoHS Compliant
Yes
Series
D-CAP+™
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS51463RGER Datasheet
Download the complete datasheet for Texas Instruments TPS51463RGER to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

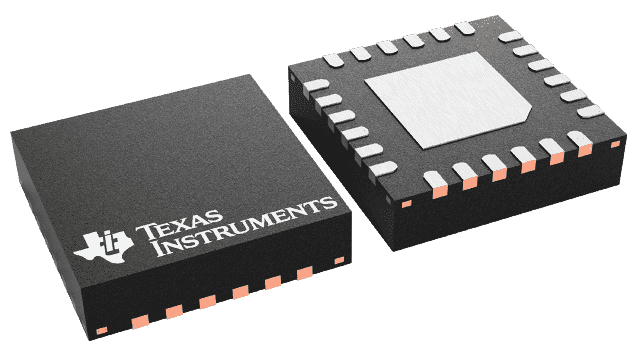

Product Images
