High-efficiency, 20-A synchronous buck converter with adjustable output voltage from 600mV to 5.5V. Features a wide input voltage range of 1.5V to 15V and a maximum output current of 20A. Operates with up to 92% efficiency and includes Eco-mode™ for reduced quiescent current of 320µA. Packaged in a 22-LSON-CLIP (5mm x 6mm x 1.5mm) surface-mount SON package, suitable for operation between -40°C and 85°C.
PackageSON
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS53353DQPR technical specifications.
General
| Package/Case | SON |
| Efficiency | 92% |
| Height | 1.5mm |
| Lead Free | Contains Lead |
| Length | 6mm |
| Max Input Voltage | 15V |
| Min Input Voltage | 1.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20A |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 600mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 15V |
| Output Configuration | Positive |
| Output Current | 20A |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Quiescent Current | 320uA |
| RoHS Compliant | Yes |
| Series | D-CAP™, Eco-Mode™ |
| Synchronous Rectifier | Yes |
| Thickness | 1.5mm |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS53353DQPR Datasheet
Download the complete datasheet for Texas Instruments TPS53353DQPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

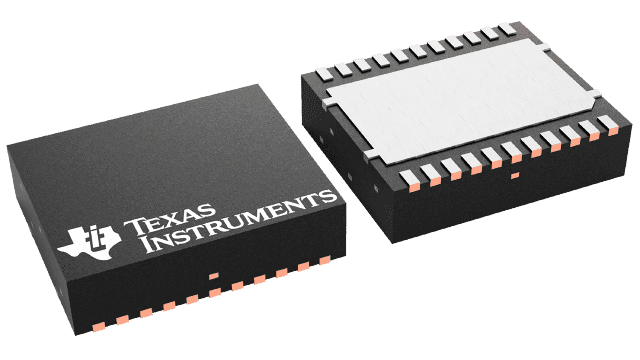

Product Images
