12A synchronous buck converter, featuring a wide 1.5V to 18V input voltage range and adjustable output voltage from 600mV to 5.5V. This power management IC offers a single positive output with a maximum output current of 12A. Operating from a 25V supply, it boasts a quiescent current of 1.35mA and supports surface mount installation in a 28-VQFN-CLIP package. Designed for a broad temperature range of -40°C to 85°C, it is RoHS compliant and packaged on tape and reel.
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS53515RVET technical specifications.
General
Package/Case
VQFN
Lead Free
Contains Lead
Max Input Voltage
18V
Min Input Voltage
1.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
12A
Max Output Voltage
5.5V
Min Output Voltage
600mV
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
25V
Output Configuration
Positive
Output Current
12A
Output Type
Adjustable
Output Voltage
5.5V
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
1.35mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SWIFT™, D-CAP3™, Eco-Mode™
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS53515RVET Datasheet
Download the complete datasheet for Texas Instruments TPS53515RVET to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

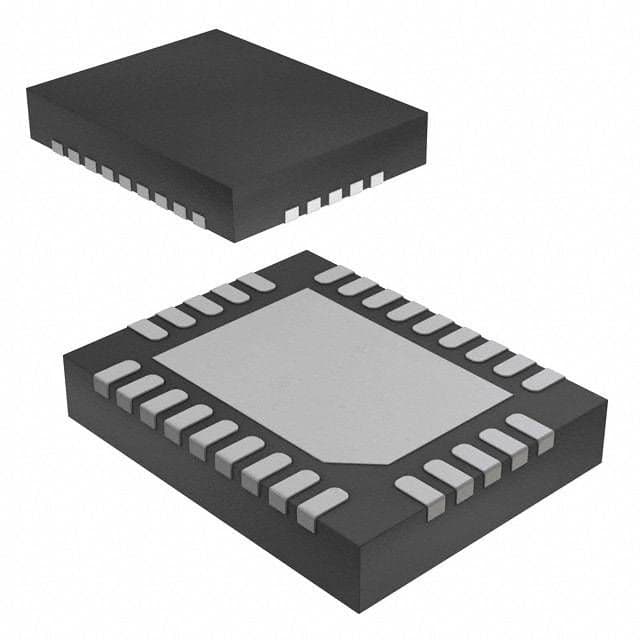

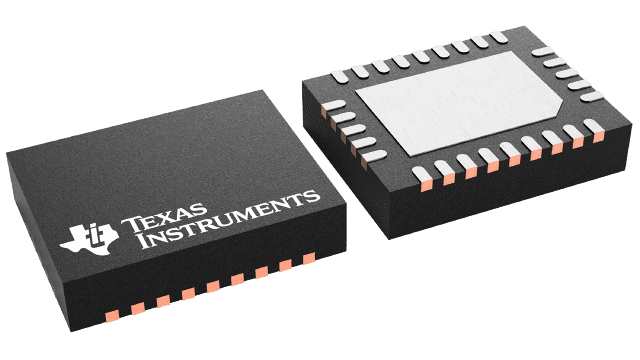

Product Images
