Adjustable output DC/DC converter with a 3.5V to 60V input range and 500mA output current. Features include a maximum output voltage of 58V, a minimum output voltage of 800mV, and a quiescent current of 116µA. This component operates within a temperature range of -40°C to 150°C and is housed in a 3mm x 3mm HTSSOP EP package. It supports a buck-boost topology and is RoHS compliant.
PackageHTSSOP EP
Quick Jump:
Technical Specifications
Texas Instruments TPS54060DGQ technical specifications.
General
Package/Case
HTSSOP EP
Height
1.02mm
Lead Free
Lead Free
Length
3mm
Max Input Voltage
60V
Min Input Voltage
3.5V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Output Voltage
58V
Min Output Voltage
800mV
Number of Outputs
1
Operating Supply Voltage
60V
Output Current
500mA
Output Type
Adjustable
Output Voltage
58V
Package Quantity
80
Packaging
Rail/Tube
Quiescent Current
116uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SWIFT™, Eco-Mode™
Synchronous Rectifier
No
Topology
Buck-Boost
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54060DGQ Datasheet
Download the complete datasheet for Texas Instruments TPS54060DGQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

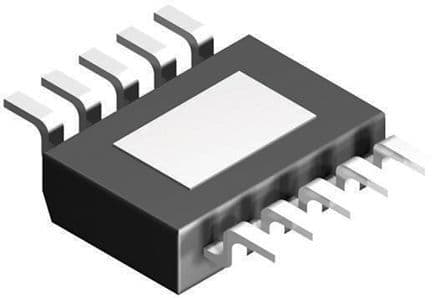

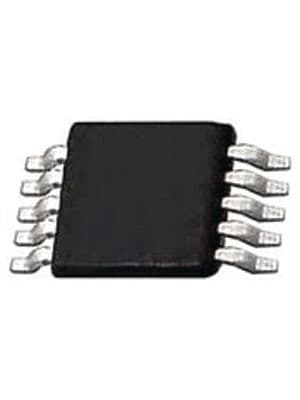

Product Images
