Synchronous step-down converter with a 4.7V to 60V input voltage range and 200mA maximum output current. Features an adjustable output voltage from 800mV to 58V, a low quiescent current of 90µA, and a maximum operating temperature of 150°C. This surface-mount device is housed in a compact 8-SON package with dimensions of 3.15mm x 3.15mm x 0.92mm. It offers a single positive output and is RoHS compliant.
PackageVSON
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS54061DRBT technical specifications.
General
Package/Case
VSON
Height
0.92mm
Lead Free
Lead Free
Length
3.15mm
Max Input Voltage
60V
Min Input Voltage
4.7V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Output Voltage
58V
Min Output Voltage
800mV
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
60V
Output Configuration
Positive
Output Current
200mA
Output Type
Adjustable
Output Voltage
58V
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
90uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TPS54061
Synchronous Rectifier
Yes
Width
3.15mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54061DRBT Datasheet
Download the complete datasheet for Texas Instruments TPS54061DRBT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

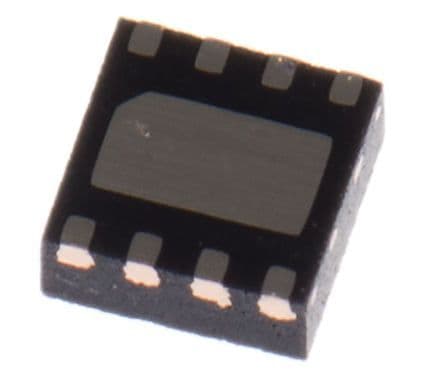

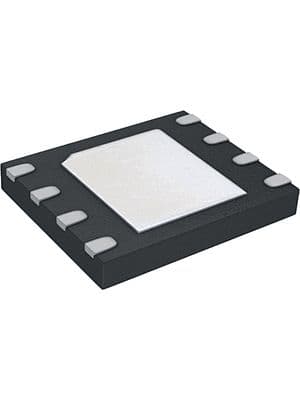

Product Images
