Texas Instruments
TPS54226RGTT
4.5V to 18V Input, 2A Synchronous Step-Down Converter with Eco-Mode™ 16-VQFN -40 to 85
PackageQFN
Quick Jump:
Technical Specifications
Texas Instruments TPS54226RGTT technical specifications.
General
Package/Case
QFN
Lead Free
Lead Free
Max Input Voltage
18V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
2A
Max Output Voltage
5.5V
Min Output Voltage
760mV
Number of Outputs
1
Operating Supply Voltage
18V
Output Configuration
Positive
Output Current
2A
Output Type
Adjustable
Output Voltage
5.7V
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
800uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
SWIFT™, D-CAP2™, Eco-Mode™
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54226RGTT Datasheet
Download the complete datasheet for Texas Instruments TPS54226RGTT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

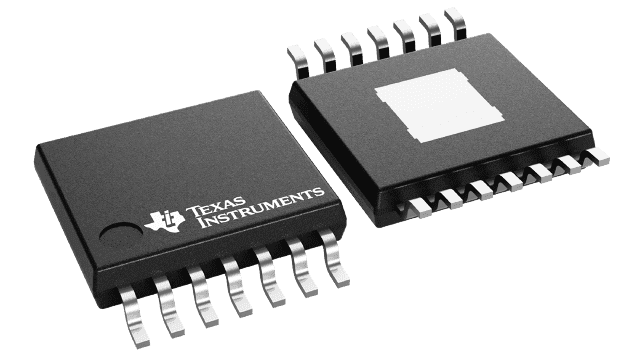

Product Images
