1MHz, 2A step-down DC/DC converter with adjustable output voltage from 800mV to 25V. Features a wide input voltage range of 3.5V to 28V and a low quiescent current of 85uA. Housed in a lead-free, 8-pin SOIC package with dimensions of 4.9mm (L) x 3.91mm (W) x 1.58mm (H). Operates across a temperature range of -40°C to 150°C and supports surface mounting. Includes Eco-Mode™ technology for enhanced efficiency.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS54232D technical specifications.
General
Package/Case
SOIC
Height
1.58mm
Lead Free
Lead Free
Length
4.9mm
Max Input Voltage
28V
Min Input Voltage
3.5V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
2A
Max Output Voltage
25V
Min Output Voltage
800mV
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
28V
Output Current
2A
Output Type
Adjustable
Output Voltage
25V
Package Quantity
75
Packaging
Rail/Tube
Quiescent Current
85uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SWIFT™, Eco-Mode™
Synchronous Rectifier
No
Weight
0.002561oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54232D Datasheet
Download the complete datasheet for Texas Instruments TPS54232D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

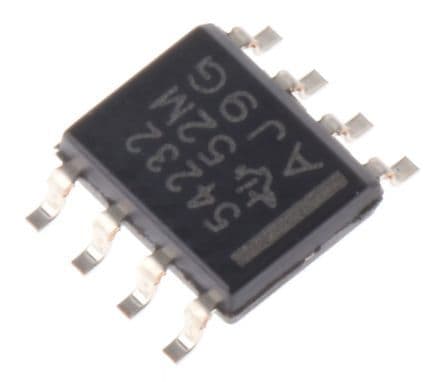

Product Images
