High-performance DC/DC step-down converter with adjustable output voltage from 800mV to 39V, capable of delivering up to 2.5A. Features a wide input voltage range of 3.5V to 42V and operates efficiently with a quiescent current of 138uA in Eco-Mode. This integrated circuit is housed in a compact HVSSOP package, measuring 3.1mm x 3.1mm x 0.95mm, and operates across an industrial temperature range of -40°C to 125°C. RoHS compliant and lead-free, this component is designed for reliable power management applications.
PackageHVSSOP
Quick Jump:
Technical Specifications
Texas Instruments TPS54240DGQR technical specifications.
General
Package/Case
HVSSOP
Height
0.95mm
Lead Free
Lead Free
Length
3.1mm
Max Input Voltage
42V
Min Input Voltage
3.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
2.5A
Max Output Voltage
39V
Min Output Voltage
800mV
Min Supply Voltage
3.5V
Number of Outputs
1
Operating Supply Voltage
42V
Output Current
2.5A
Output Type
Adjustable
Output Voltage
39V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
138uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SWIFT™, Eco-Mode™
Synchronous Rectifier
No
Topology
Buck-Boost
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54240DGQR Datasheet
Download the complete datasheet for Texas Instruments TPS54240DGQR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

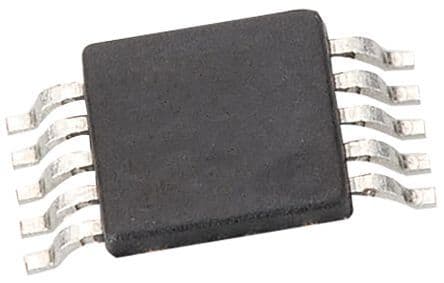

Product Images
