Synchronous step-down converter with 3V to 6V input voltage range and up to 3A output current. Features adjustable output voltage from 900mV to 3.3V, a single output, and a 3.85W power dissipation. Operates across a -40°C to 125°C temperature range and is housed in a 6.5mm x 4.4mm x 1.15mm HTSSOP package. This lead-free, RoHS-compliant component offers 6.2mA quiescent current and is supplied in rail/tube packaging.
PackageHTSSOP
Power3.85W
Quick Jump:
Technical Specifications
Texas Instruments TPS54310PWPG4 technical specifications.
General
Package/Case
HTSSOP
Height
1.15mm
Lead Free
Lead Free
Length
6.5mm
Max Input Voltage
6V
Min Input Voltage
3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
3.3V
Min Output Voltage
900mV
Number of Outputs
1
Operating Supply Voltage
6V
Output Current
3A
Output Type
Adjustable
Output Voltage
3.3V
Package Quantity
70
Packaging
Rail/Tube
Power Dissipation
3.85W
Quiescent Current
6.2mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SWIFT™
Synchronous Rectifier
Yes
Weight
0.002885oz
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54310PWPG4 Datasheet
Download the complete datasheet for Texas Instruments TPS54310PWPG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

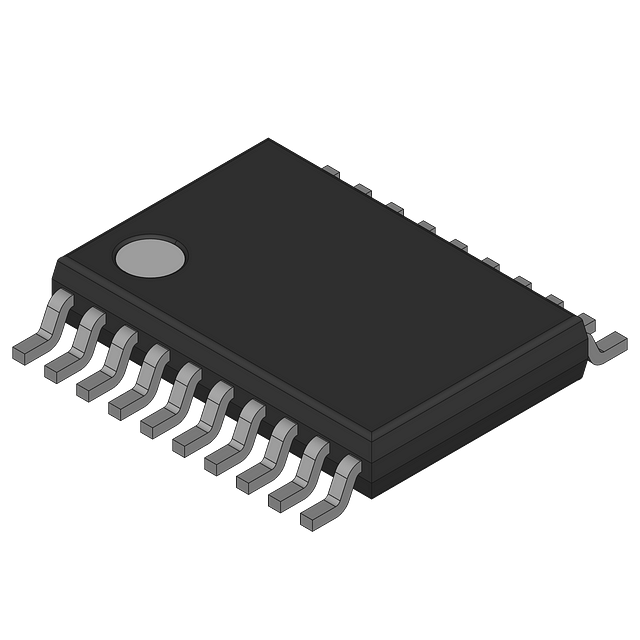

Product Images
