Synchronous step-down DC-DC controller with adjustable output voltage from 900mV to 3.3V. Features a maximum output current of 3A and operates from a 3V to 6V input voltage range. This single-output regulator is housed in a 20-pin HTSSOP package and offers a quiescent current of 6.2mA. Designed for efficient power management, it operates across a temperature range of -40°C to 125°C.
PackageHTSSOP
Quick Jump:
Technical Specifications
Texas Instruments TPS54310PWPR technical specifications.
General
Package/Case
HTSSOP
Input Bias Current
6.2mA
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
3.3V
Min Output Voltage
900mV
Number of Outputs
1
Operating Supply Voltage
6V
Output Current
3A
Output Type
Adjustable
Output Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
6.2mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SWIFT™
Synchronous Rectifier
Yes
Weight
0.002885oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54310PWPR Datasheet
Download the complete datasheet for Texas Instruments TPS54310PWPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

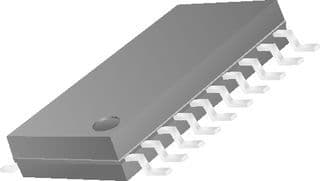

Product Images
