Synchronous step-down DC-DC controller and regulator, accepting 3V to 6V input and providing a fixed 1.5V output at up to 3A. This single-output power management IC features a 1.5V nominal output voltage and a maximum output power of 3.85W. Packaged in a 20-pin HTSSOP with SMD/SMT termination, it operates within a -40°C to 85°C temperature range and is RoHS compliant.
PackageHTSSOP
Power3.85W
Quick Jump:
Technical Specifications
Texas Instruments TPS54313PWP technical specifications.
General
Package/Case
HTSSOP
Height
1.15mm
Lead Free
Lead Free
Length
6.5mm
Max Input Voltage
6V
Min Input Voltage
3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
1.5V
Min Output Voltage
1.5V
Nominal Output Voltage
1.5V
Number of Outputs
1
Operating Supply Voltage
6V
Output Configuration
Positive
Output Current
3A
Output Power
3.85W
Output Type
Fixed
Output Voltage
1.5V
Package Quantity
70
Packaging
Rail/Tube
Quiescent Current
6.2mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SWIFT™
Synchronous Rectifier
Yes
Termination
SMD/SMT
Weight
0.002885oz
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54313PWP Datasheet
Download the complete datasheet for Texas Instruments TPS54313PWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

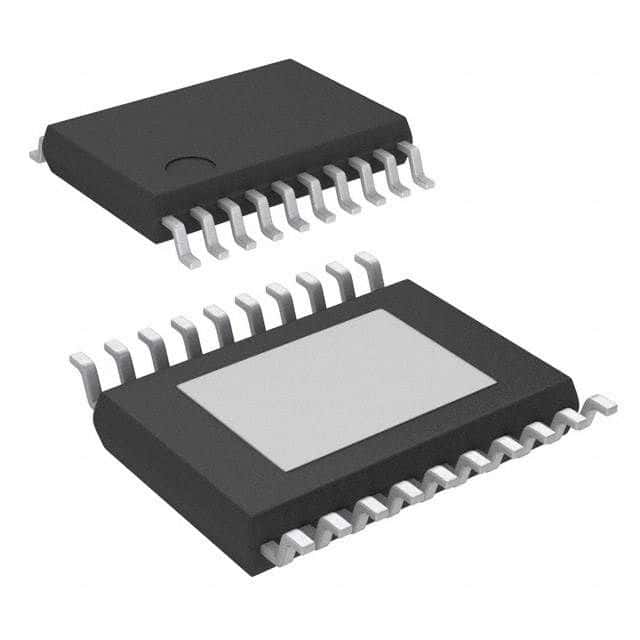

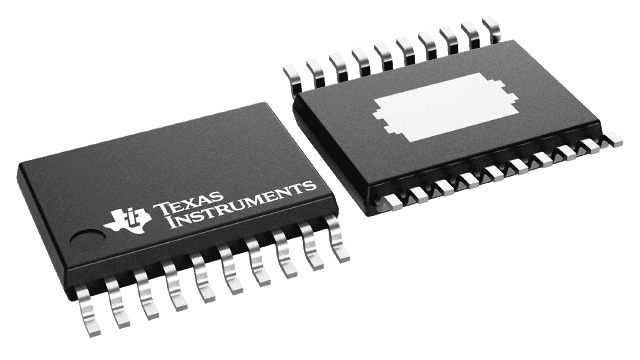

Product Images
