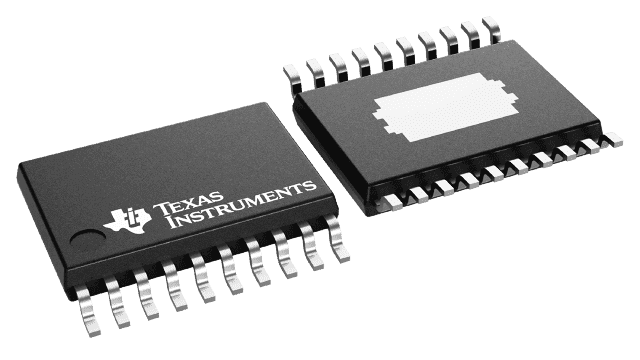

Synchronous step-down DC/DC converter with a 3V to 6V input voltage range and a fixed 2.5V output voltage. Delivers up to 3A of output current, providing 3.85W of output power. Features a quiescent current of 6.2mA and operates across a temperature range of -40°C to 85°C. Packaged in an HTSSOP for efficient thermal management.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TPS54315PWP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments TPS54315PWP technical specifications.
| Package/Case | HTSSOP |
| Input Bias Current | 6.2mA |
| Lead Free | Lead Free |
| Max Input Voltage | 6V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Output Voltage | 2.5V |
| Min Output Voltage | 2.5V |
| Nominal Output Voltage | 2.5V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 6V |
| Output Current | 3A |
| Output Power | 3.85W |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| Package Quantity | 70 |
| Packaging | Rail/Tube |
| Quiescent Current | 6.2mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SWIFT™ |
| Synchronous Rectifier | Yes |
| Weight | 0.002885oz |
| RoHS | Compliant |
