Synchronous step-down DC-DC controller and regulator, featuring a fixed 3.3V output voltage and up to 3A output current. Operates with an input voltage range of 4V to 6V, delivering 3.85W of output power. Housed in a 20-pin HTSSOP package, this component offers a wide operating temperature range from -40°C to 85°C and is RoHS compliant.
PackageHTSSOP
Power3.85W
Quick Jump:
Technical Specifications
Texas Instruments TPS54316PWP technical specifications.
General
| Package/Case | HTSSOP |
| Lead Free | Lead Free |
| Max Input Voltage | 6V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Output Voltage | 3.3V |
| Min Output Voltage | 3.3V |
| Nominal Output Voltage | 3.3V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 6V |
| Output Configuration | Positive |
| Output Current | 3A |
| Output Power | 3.85W |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 70 |
| Packaging | Rail/Tube |
| Quiescent Current | 6.2mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SWIFT™ |
| Synchronous Rectifier | Yes |
| Weight | 0.002885oz |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS54316PWP Datasheet
Download the complete datasheet for Texas Instruments TPS54316PWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

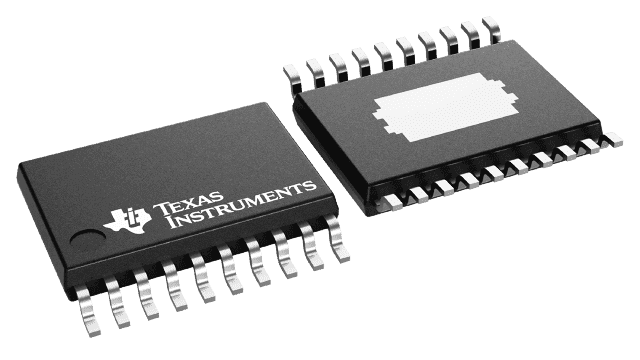

Product Images
