3A synchronous step-down DC/DC converter with adjustable output voltage from 891mV to 3.3V. Features a 3V to 6V input voltage range and a maximum output current of 3A. Operates across a wide temperature range of -40°C to 125°C. Packaged in a 4mm VQFN EP for surface mount applications, this RoHS compliant component is supplied on tape and reel.
PackageVQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS54317RHFT technical specifications.
General
Package/Case
VQFN EP
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
3.3V
Min Output Voltage
891mV
Max Supply Voltage
6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Outputs
1
Output Configuration
Positive
Output Current
3A
Output Type
Adjustable
Output Voltage
3.3V
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
6.2mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SWIFT™
Synchronous Rectifier
Yes
Termination
SMD/SMT
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54317RHFT Datasheet
Download the complete datasheet for Texas Instruments TPS54317RHFT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

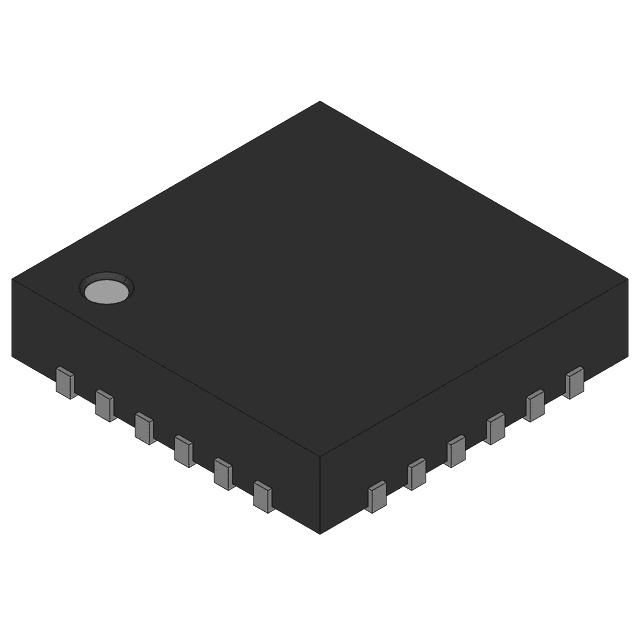

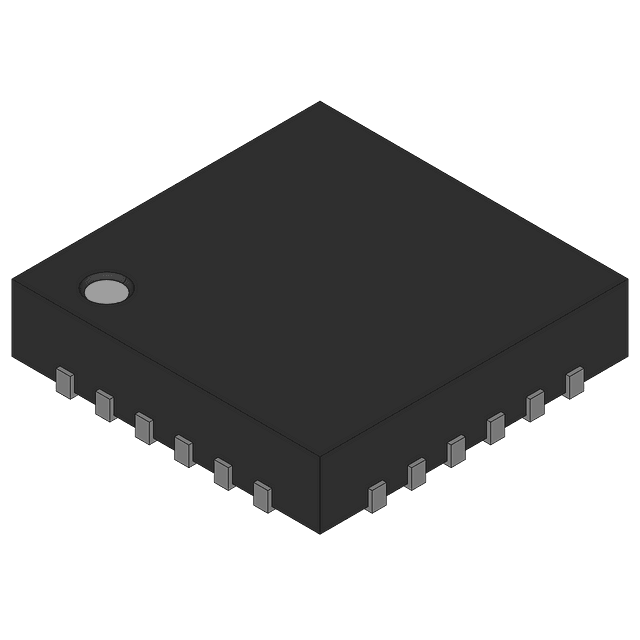

Product Images
