1MHz, 3.5A step-down DC/DC converter with adjustable output voltage from 800mV to 26.04V. Features a wide input voltage range of 3.5V to 28V and a low quiescent current of 82µA in Eco-mode. This surface mountable, 8-pin HSOP package component operates from -40°C to 150°C.
PackageHSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS54332DDAR technical specifications.
General
Package/Case
HSOP
Height
1.55mm
Lead Free
Contains Lead
Length
5mm
Max Input Voltage
28V
Min Input Voltage
3.5V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
3.5A
Max Output Voltage
26.04V
Min Output Voltage
800mV
Min Supply Voltage
3.5V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
28V
Output Configuration
Positive
Output Current
3.5A
Output Type
Adjustable
Output Voltage
25V
Package Quantity
2500
Packaging
Tape and Reel
Quiescent Current
82uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Eco-Mode™
Synchronous Rectifier
No
Weight
0.00249oz
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54332DDAR Datasheet
Download the complete datasheet for Texas Instruments TPS54332DDAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

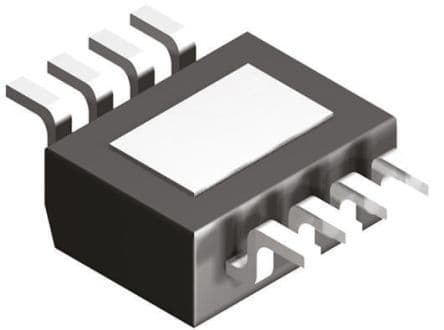

Product Images
