Synchronous step-down converter with adjustable output voltage from 760mV to 7V, capable of delivering up to 3A output current. Features a wide input voltage range of 4.5V to 23V and operates with D-CAP2 mode for fast transient response. This surface mountable integrated circuit is housed in an 8-SO PowerPAD package with dimensions of 5mm x 4mm x 1.55mm. It offers a quiescent current of 850uA and operates across a temperature range of -40°C to 85°C, with RoHS compliance.
PackageHSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS54339DDA technical specifications.
General
Package/Case
HSOP
Height
1.55mm
Lead Free
Lead Free
Length
5mm
Max Input Voltage
23V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
7V
Min Output Voltage
760mV
Mount
Surface Mount
Number of Outputs
1
Output Current
3A
Output Type
Adjustable
Output Voltage
7V
Package Quantity
75
Packaging
Rail/Tube
Quiescent Current
850uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SWIFT™, D-CAP2™
Synchronous Rectifier
Yes
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54339DDA Datasheet
Download the complete datasheet for Texas Instruments TPS54339DDA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

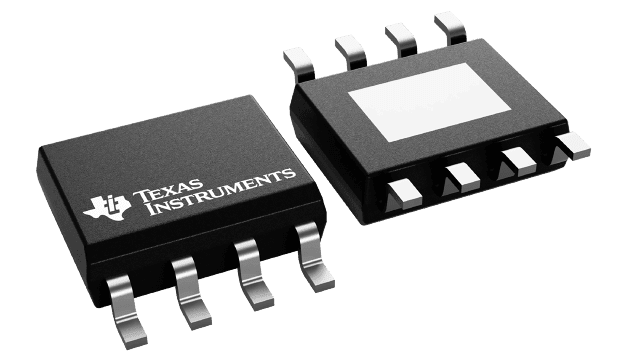

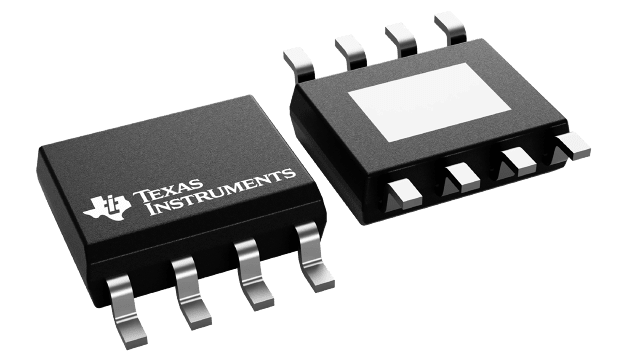

Product Images
