3A synchronous step-down converter with adjustable output voltage from 900mV to 4.5V. Features a 3V to 6V input voltage range and a maximum output current of 3A. Operates across a wide temperature range of -40°C to 85°C. Packaged in a 20-pin HTSSOP with dimensions of 6.5mm x 4.4mm x 1.15mm. RoHS compliant and lead-free.
PackageHTSSOP
Power3.85W
Quick Jump:
Technical Specifications
Texas Instruments TPS54380PWP technical specifications.
General
Package/Case
HTSSOP
Height
1.15mm
Input Bias Current
6.2mA
Lead Free
Lead Free
Length
6.5mm
Max Input Voltage
6V
Min Input Voltage
3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
4.5V
Min Output Voltage
900mV
Number of Outputs
1
Operating Supply Voltage
6V
Output Current
3A
Output Power
3.85W
Output Type
Adjustable
Output Voltage
3.3V
Package Quantity
70
Packaging
Rail/Tube
Quiescent Current
6.2mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SWIFT™
Synchronous Rectifier
Yes
Weight
0.002885oz
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54380PWP Datasheet
Download the complete datasheet for Texas Instruments TPS54380PWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

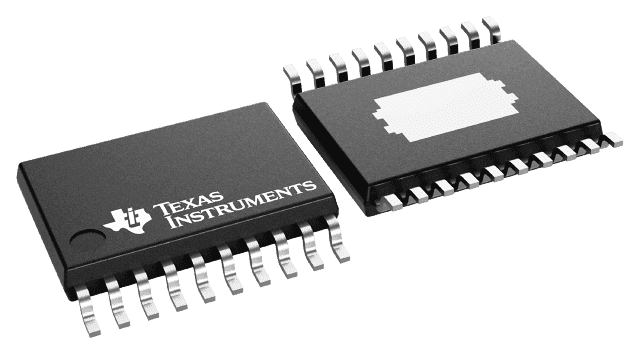

Product Images
