Dual 3A step-down converter with adjustable output voltage from 800mV to 25.2V. Features a 4.5V to 28V input voltage range and 600kHz switching frequency. Offers 85% efficiency and operates from -40°C to 125°C. Surface mountable in a 14-HTSSOP package.
PackageHTSSOP
MountingSurface Mount
Power1.6W
Quick Jump:
Technical Specifications
Texas Instruments TPS54386PWP technical specifications.
General
Package/Case
HTSSOP
Efficiency
85%
Height
1.15mm
Lead Free
Lead Free
Length
5mm
Max Input Voltage
28V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
25.2V
Min Output Voltage
800mV
Mount
Surface Mount
Number of Outputs
2
Operating Supply Voltage
28V
Output Configuration
Positive
Output Current
3A
Output Power
1.6W
Output Type
Adjustable
Output Voltage
25.2V
Package Quantity
90
Packaging
Rail/Tube
Quiescent Current
1.8mA
Radiation Hardening
No
RoHS Compliant
Yes
Series
TPS54386
Synchronous Rectifier
No
Weight
0.002046oz
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54386PWP Datasheet
Download the complete datasheet for Texas Instruments TPS54386PWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

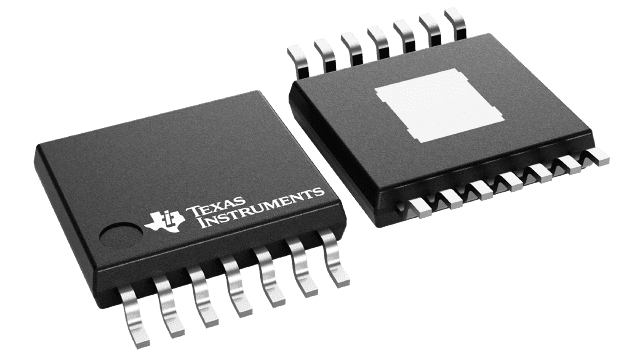

Product Images
