Synchronous step-down converter with adjustable output voltage from 760mV to 7V, capable of delivering up to 4A. Features a wide input voltage range of 4.5V to 18V and operates with a quiescent current of 950uA. This surface mountable, lead-free component is housed in an 8-SO PowerPAD package with dimensions of 4.89mm length, 3.9mm width, and 1.7mm height. Designed for operation between -40°C and 85°C, it supports a single positive output and includes a synchronous rectifier.
PackageHSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS54427DDAR technical specifications.
General
Package/Case
HSOP
Height
1.7mm
Lead Free
Lead Free
Length
4.89mm
Max Input Voltage
18V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
4A
Max Output Voltage
7V
Min Output Voltage
760mV
Mount
Surface Mount
Number of Channels
2
Number of Outputs
1
Operating Supply Voltage
18V
Output Configuration
Positive
Output Current
4A
Output Type
Adjustable
Output Voltage
7V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
950uA
RoHS Compliant
Yes
Series
SWIFT™, D-CAP2™
Synchronous Rectifier
Yes
Thickness
1.48mm
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54427DDAR Datasheet
Download the complete datasheet for Texas Instruments TPS54427DDAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

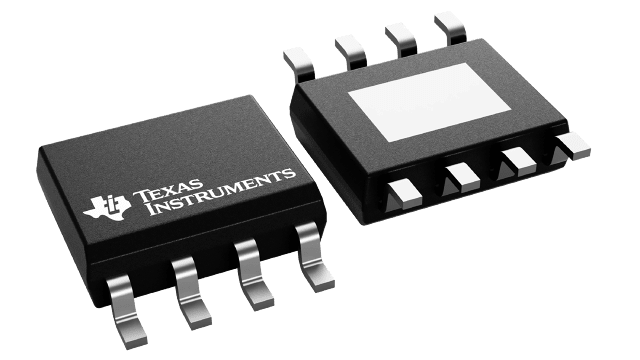

Product Images
