5A, 500kHz step-down DC/DC converter with adjustable output voltage from 1.22V to 31V. Features a wide input voltage range of 5.5V to 36V and a maximum output current of 5A. Offers up to 90% efficiency and operates across a temperature range of -40°C to 125°C. Surface mountable in an 8-SO PowerPAD package with dimensions of 4.89mm (L) x 3.9mm (W) x 1.48mm (H). RoHS compliant and lead-free.
PackageHSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS5450DDA technical specifications.
General
Package/Case
HSOP
Efficiency
90%
Height
1.48mm
Lead Free
Lead Free
Length
4.89mm
Max Input Voltage
36V
Min Input Voltage
5.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
5A
Max Output Voltage
31V
Min Output Voltage
1.22V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
36V
Output Current
5A
Output Type
Adjustable
Output Voltage
31V
Package Quantity
75
Packaging
Rail/Tube
Quiescent Current
3mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SWIFT™
Synchronous Rectifier
No
Weight
0.00249oz
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS5450DDA Datasheet
Download the complete datasheet for Texas Instruments TPS5450DDA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

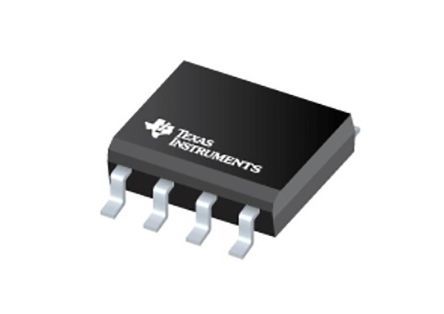

Product Images
