Synchronous step-down DC-DC controller with adjustable output voltage from 900mV to 4.5V. Features a maximum output current of 6A and a maximum input voltage of 6V, operating from 3V to 6V. This surface-mount component is housed in a 28-pin HTSSOP package, measuring 9.7mm x 4.4mm x 1.15mm. It offers a quiescent current of 11mA and is RoHS compliant.
PackageHTSSOP
Current Rating11A
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS54610PWP technical specifications.
General
| Package/Case | HTSSOP |
| Current Rating | 11A |
| Height | 1.15mm |
| Lead Free | Lead Free |
| Length | 9.7mm |
| Max Input Voltage | 6V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 6A |
| Max Output Voltage | 4.5V |
| Min Output Voltage | 900mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 6V |
| Output Current | 6A |
| Output Type | Adjustable |
| Output Voltage | 4.5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Quiescent Current | 11mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SWIFT™ |
| Synchronous Rectifier | Yes |
| Weight | 0.00418oz |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS54610PWP Datasheet
Download the complete datasheet for Texas Instruments TPS54610PWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

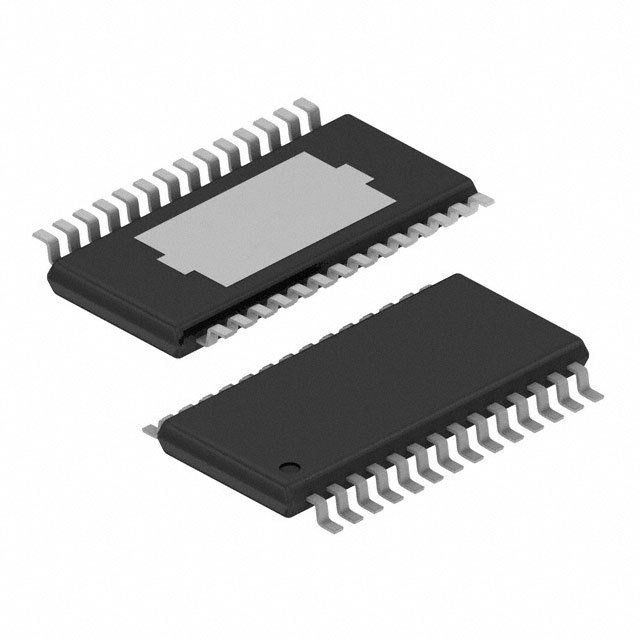

Product Images
