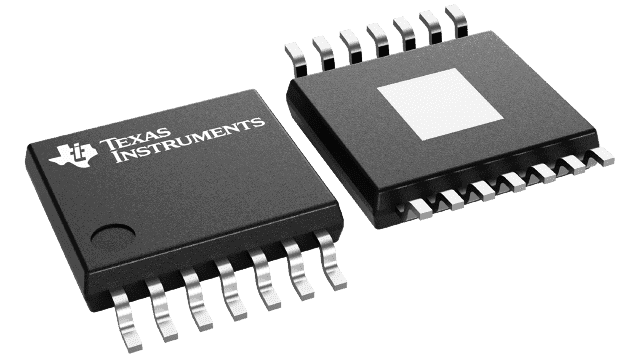

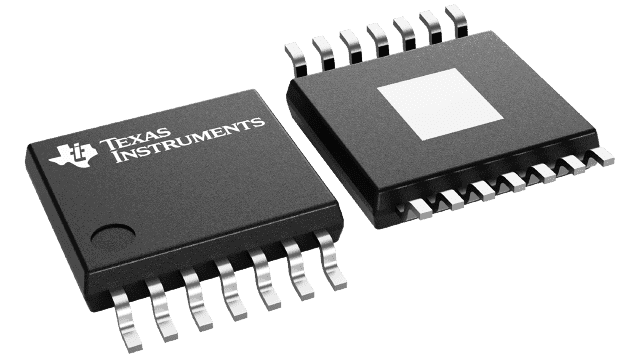

Synchronous step-down converter with adjustable output voltage from 765mV to 5.5V, capable of delivering up to 6.5A. Features a wide input voltage range of 4.5V to 18V and a maximum operating temperature of 85°C. This surface mountable, positive output converter is housed in an HTSSOP package and is RoHS compliant. Designed for efficient power management with a quiescent current of 950uA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TPS54625PWPR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | HTSSOP |
| Lead Free | Lead Free |
| Max Input Voltage | 18V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 6.5A |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 765mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 18V |
| Output Configuration | Positive |
| Output Current | 6.5A |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Quiescent Current | 950uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | D-CAP2™ |
| Synchronous Rectifier | Yes |
| Weight | 0.008501oz |
| RoHS | Compliant |
