Synchronous buck converter with 6A maximum output current, featuring a 4.5V to 18V input voltage range and adjustable output voltage from 765mV to 5.5V. This power management IC supports a single positive output and operates with a quiescent current of 950uA. Designed for surface mounting, it is housed in an HSOP package and operates across a temperature range of -40°C to 125°C. The component is RoHS compliant and utilizes D-CAP2™ and Eco-Mode™ series technologies.
PackageHSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS54628DDAR technical specifications.
General
Package/Case
HSOP
Lead Free
Lead Free
Max Input Voltage
18V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
6A
Max Output Voltage
5.5V
Min Output Voltage
765mV
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
18V
Output Configuration
Positive
Output Current
6A
Output Type
Adjustable
Output Voltage
5.5V
Package Quantity
2500
Packaging
Tape and Reel
Quiescent Current
950uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
D-CAP2™, Eco-Mode™
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54628DDAR Datasheet
Download the complete datasheet for Texas Instruments TPS54628DDAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

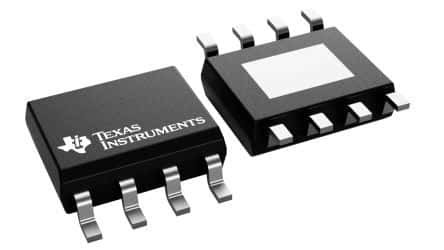

Product Images
