Positive fixed output charge pump IC, operating from a 2.7V to 5.5V input range. Delivers a nominal 5V output with a maximum output current of 25mA. Features a low quiescent current of 250uA and operates within a temperature range of -40°C to 85°C. Packaged in an 8-pin VSSOP for tape and reel distribution.
PackageVSSOP
Quick Jump:
Technical Specifications
Texas Instruments TPS60241DGKR technical specifications.
General
Package/Case
VSSOP
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
2.7V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
25mA
Max Output Voltage
5.125V
Min Output Voltage
4.875V
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Nominal Output Voltage
5V
Number of Outputs
1
Output Configuration
Positive
Output Current
25mA
Output Type
Fixed
Output Voltage
5V
Packaging
Tape and Reel
Quiescent Current
250uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Topology
Boost
Weight
0.000917oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS60241DGKR Datasheet
Download the complete datasheet for Texas Instruments TPS60241DGKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

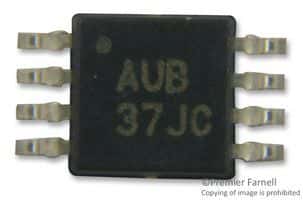

Product Images
