Boost DC-DC converter with adjustable output voltage from 1.8V to 28V. Features a 1MHz operating frequency, 86% efficiency, and supports input voltages from 1.8V to 6V. Delivers up to 400mA output current with a high-level output current of 90mA. Packaged in a 5-pin SOT-23, this RoHS compliant component operates from -40°C to 85°C.
Frequency1MHz
PackageSOT-23-5
Current Rating28mA
Power357mW
Quick Jump:
Technical Specifications
Texas Instruments TPS61040DBVR technical specifications.
General
Package/Case
SOT-23-5
Current Rating
28mA
Dimming
PWM
Efficiency
86%
Frequency
1MHz
High Level Output Current
90mA
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
1.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
90mA
Max Output Voltage
28V
Min Output Voltage
1.8V
Max Supply Current
50uA
Max Supply Voltage
6V
Min Supply Voltage
1.8V
Number of Channels
1
Number of Outputs
1
Operating Frequency
1 MHz
Output Current
400mA
Output Current per Channel
350mA
Output Power
357mW
Output Type
Adjustable
Output Voltage
28V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
28uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Thickness
1.2mm
Topology
Boost
Weight
0.000459oz
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS61040DBVR Datasheet
Download the complete datasheet for Texas Instruments TPS61040DBVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

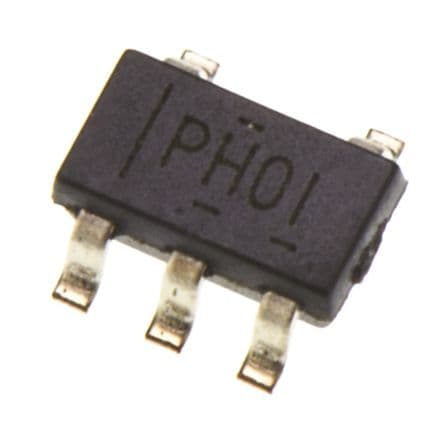

Product Images
