Texas Instruments
TPS61060YZFR
15V, 400mA switch, 1MHz boost converter w/brightness control for white LED power Supplies 8-DSBGA -40 to 85
Frequency1.2MHz
PackageBGA
Quick Jump:
Technical Specifications
Texas Instruments TPS61060YZFR technical specifications.
General
| Package/Case | BGA |
| Frequency | 1.2MHz |
| High Level Output Current | 60mA |
| Lead Free | Lead Free |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 60mA |
| Max Supply Current | 400mA |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2.7V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Segments | 3 |
| Output Current | 400mA |
| Output Voltage | 14.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 1mA |
| RoHS Compliant | Yes |
| Topology | Boost |
| Width | 2.15mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS61060YZFR Datasheet
Download the complete datasheet for Texas Instruments TPS61060YZFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

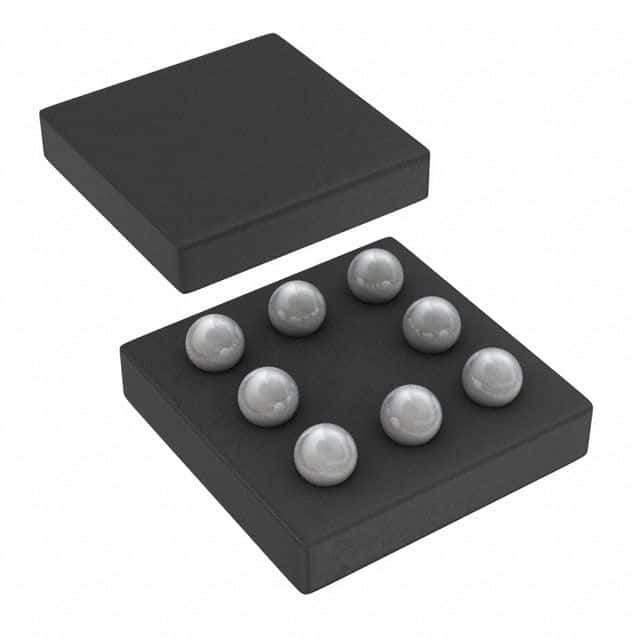

Product Images
