Boost converter IC featuring 1MHz operating frequency, 18.5V output voltage, and 400mA output current. Designed for white LED power supplies, it offers brightness control via PWM dimming and operates with an 80% efficiency. This single-channel, single-output device supports input voltages from 2.7V to 6V and handles a maximum input voltage of 6V. Packaged in an 8-SON (3mm width), it operates across a temperature range of -40°C to 85°C and is RoHS compliant.
Frequency1MHz
PackageSON
Quick Jump:
Technical Specifications
Texas Instruments TPS61061DRBRG4 technical specifications.
General
| Package/Case | SON |
| Dimming | PWM |
| Efficiency | 80% |
| Frequency | 1MHz |
| Lead Free | Lead Free |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 60mA |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2.7V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Segments | 4 |
| Operating Frequency | 1000 kHz |
| Output Current | 400mA |
| Output Current per Channel | 400mA |
| Output Voltage | 18.5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 1mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Topology | Boost |
| Weight | 0.000847oz |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS61061DRBRG4 Datasheet
Download the complete datasheet for Texas Instruments TPS61061DRBRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

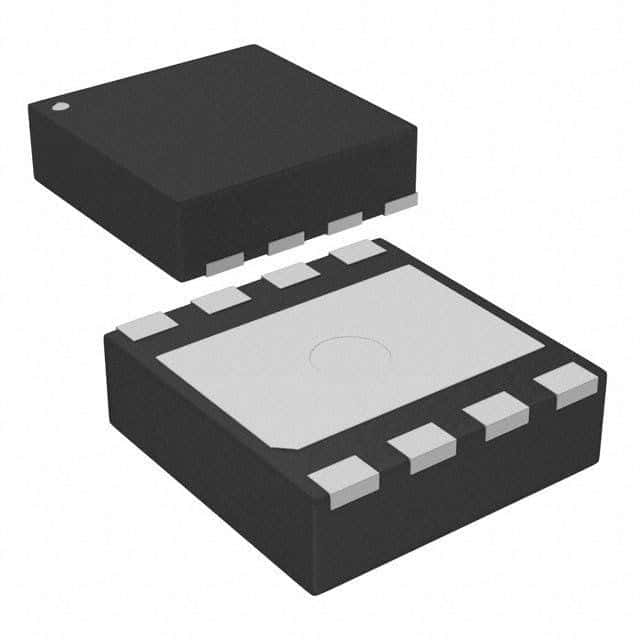

Product Images
