1MHz, 18.5V output boost converter with 400mA output current, designed for white LED power supplies. Features include a 19V maximum output voltage, 6V maximum input voltage, and 2.7V minimum input voltage. Operates at 1.2MHz with 80% efficiency and 1mA quiescent current. Packaged in an 8-DSBGA, this lead-free and RoHS compliant component offers a wide operating temperature range of -40°C to 85°C.
Frequency1.2MHz
PackageBGA
Quick Jump:
Technical Specifications
Texas Instruments TPS61061YZFR technical specifications.
General
| Package/Case | BGA |
| Efficiency | 80% |
| Frequency | 1.2MHz |
| Lead Free | Lead Free |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 60mA |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2.7V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Segments | 4 |
| Operating Frequency | 1000 kHz |
| Output Current | 400mA |
| Output Voltage | 18.5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 1mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Topology | Boost |
| Width | 2.15mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS61061YZFR Datasheet
Download the complete datasheet for Texas Instruments TPS61061YZFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

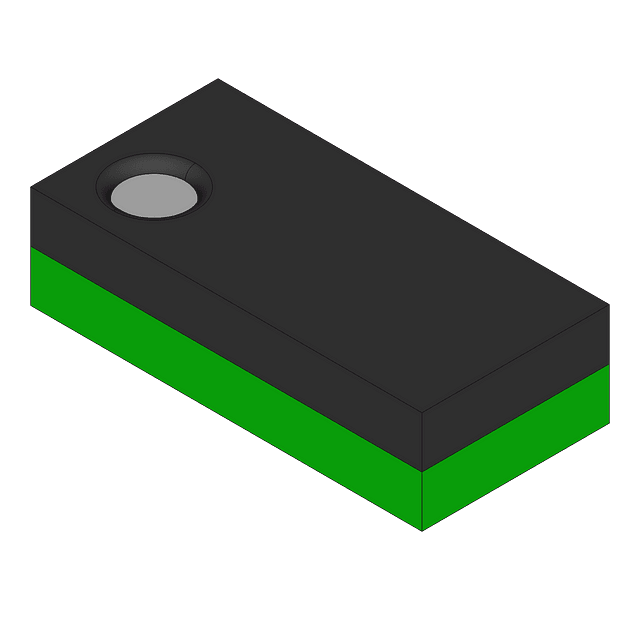

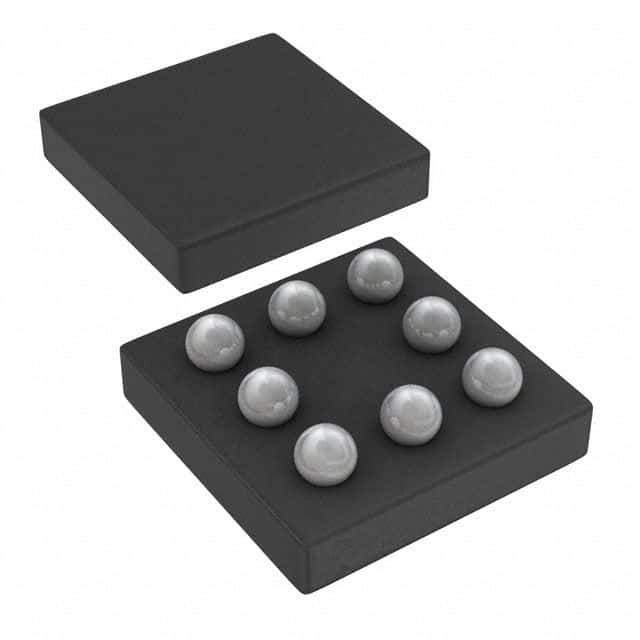

Product Images
