1MHz boost converter with 23.5V output voltage and 400mA output current, featuring PWM dimming for white LED power supplies. Operates from a 2.7V to 6V input voltage range, delivering up to 400mA per channel. Achieves 80% efficiency and is housed in a compact 2.15mm BGA package. Suitable for operation across a -40°C to 85°C temperature range.
Frequency1MHz
PackageBGA
Quick Jump:
Technical Specifications
Texas Instruments TPS61062YZFR technical specifications.
General
| Package/Case | BGA |
| Dimming | PWM |
| Efficiency | 80% |
| Frequency | 1MHz |
| Lead Free | Lead Free |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 60mA |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2.7V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Segments | 5 |
| Operating Frequency | 1000 kHz |
| Output Current | 400mA |
| Output Current per Channel | 400mA |
| Output Voltage | 23.5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 1mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Topology | Boost |
| Width | 2.15mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS61062YZFR Datasheet
Download the complete datasheet for Texas Instruments TPS61062YZFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

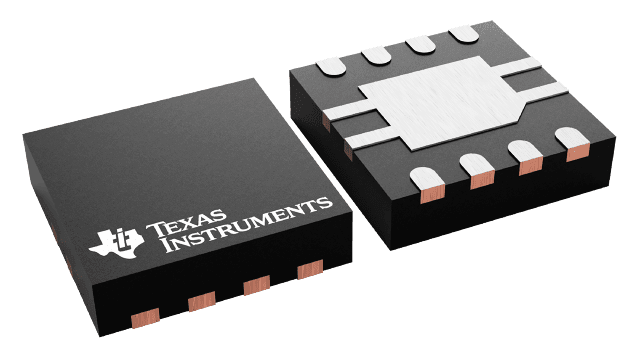

Product Images
