High-efficiency 90% white LED driver IC featuring digital and PWM brightness control. This boost topology component operates with a 700kHz frequency, accepting input voltages from 2.7V to 18V and delivering up to 26V output voltage. It supports a maximum output current of 120mA and is housed in a compact 2mm x 2mm SON package. Designed for a wide operating temperature range of -40°C to 85°C, this RoHS compliant component is supplied on tape and reel.
Frequency700kHz
PackageSON
Power1.54W
Quick Jump:
Technical Specifications
Texas Instruments TPS61160DRVT technical specifications.
General
| Package/Case | SON |
| Efficiency | 90% |
| Frequency | 700kHz |
| High Level Output Current | 100uA |
| Lead Free | Lead Free |
| Low Level Output Current | 100uA |
| Max Input Voltage | 18V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 120mA |
| Max Output Voltage | 26V |
| Max Power Dissipation | 1.54W |
| Max Supply Current | 1.8mA |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 2.7V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Segments | 10 |
| Operating Frequency | 600 kHz |
| Output Current | 700mA |
| Output Voltage | 26V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.54W |
| Quiescent Current | 1.5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS61160DRVT Datasheet
Download the complete datasheet for Texas Instruments TPS61160DRVT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

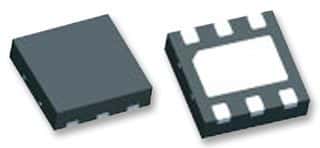

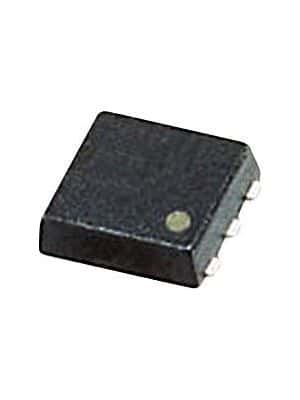

Product Images
