White LED driver IC featuring PWM dimming and a 600kHz operating frequency. Supports up to 10 LEDs in series with a 38V output voltage and 85mA output current. Operates from a 2.7V to 18V input voltage range and is housed in a compact 2mm x 2mm WSON package. Ideal for applications requiring efficient LED illumination control.
Frequency600kHz
Power1.54W
Quick Jump:
Technical Specifications
Texas Instruments TPS61161ADRVR technical specifications.
General
Dimming
PWM
Frequency
600kHz
Height
800um
High Level Output Current
100uA
Lead Free
Lead Free
Length
2mm
Low Level Output Current
100uA
Max Input Voltage
18V
Min Input Voltage
2.7V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.54W
Max Supply Current
1.8mA
Max Supply Voltage
18V
Min Supply Voltage
2.7V
Number of Channels
1
Number of Outputs
1
Number of Segments
10
Operating Frequency
600 kHz
Output Current
85mA
Output Current per Channel
700mA
Output Voltage
38V
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
1.54W
Quiescent Current
1.5mA
Radiation Hardening
No
RoHS Compliant
Yes
Thickness
750um
Topology
Boost
Width
2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS61161ADRVR Datasheet
Download the complete datasheet for Texas Instruments TPS61161ADRVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

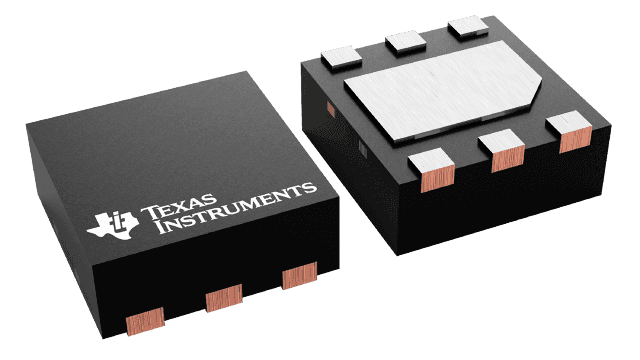

Product Images
