Boost converter for white LED driving, featuring digital and PWM brightness control. Delivers up to 700mA output current at 38V, with a 90% efficiency. Operates from a 2.7V to 18V input voltage range and supports a 600kHz operating frequency. Housed in a compact 2mm x 2mm WSON package, this lead-free and RoHS compliant component is suitable for applications within a -40°C to 85°C temperature range.
Frequency700kHz
PackageSON
Power1.54W
Quick Jump:
Technical Specifications
Texas Instruments TPS61161DRVT technical specifications.
General
Package/Case
SON
Efficiency
90%
Frequency
700kHz
High Level Output Current
100uA
Lead Free
Lead Free
Low Level Output Current
100uA
Max Input Voltage
18V
Min Input Voltage
2.7V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
700mA
Max Output Voltage
38V
Max Power Dissipation
1.54W
Max Supply Current
1.8mA
Max Supply Voltage
18V
Min Supply Voltage
2.7V
Number of Channels
1
Number of Outputs
1
Number of Segments
10
Operating Frequency
600 kHz
Output Current
700mA
Output Voltage
38V
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
1.54W
Quiescent Current
1.5mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Topology
Boost
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS61161DRVT Datasheet
Download the complete datasheet for Texas Instruments TPS61161DRVT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

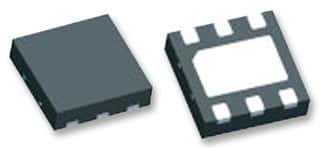

Product Images
