1.2A, 38V output LED driver IC featuring PWM dimming and a 1.2MHz operating frequency. This boost topology component supports input voltages from 3V to 18V and offers a single channel with a single output. Packaged in a SON case, it operates within a temperature range of -40°C to 85°C and is RoHS compliant.
Frequency1.2MHz
PackageSON
Power1.54W
Quick Jump:
Technical Specifications
Texas Instruments TPS61165DRVR technical specifications.
General
Package/Case
SON
Dimming
PWM
Frequency
1.2MHz
High Level Output Current
100uA
Lead Free
Lead Free
Low Level Output Current
100uA
Max Input Voltage
18V
Min Input Voltage
3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.54W
Max Supply Current
2.3mA
Max Supply Voltage
18V
Min Supply Voltage
3V
Number of Channels
1
Number of Outputs
1
Number of Segments
10
Operating Frequency
1.2 MHz
Output Current
1.2A
Output Current per Channel
1.2A
Output Voltage
38V
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
1.54W
Quiescent Current
1.5mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Topology
Boost
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS61165DRVR Datasheet
Download the complete datasheet for Texas Instruments TPS61165DRVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

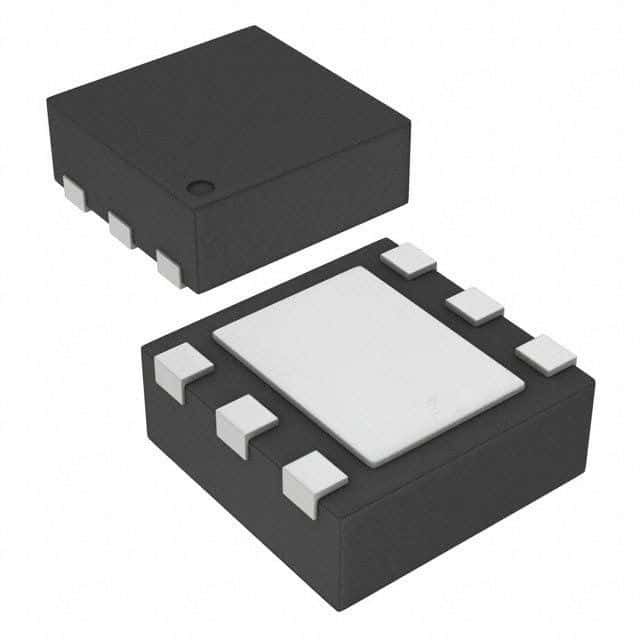

Product Images
