The TPS61232DRCR is a 5V 4A boost DC/DC controller from Texas Instruments. It is packaged in a VSON-10 package and is RoHS compliant. The device operates over a temperature range of -40°C to 85°C. It has a quiescent current of 35uA and is a synchronous rectifier topology. The TPS61232DRCR is a fixed output voltage device with a minimum output voltage of 5V.
PackageVSON
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS61232DRCR technical specifications.
General
| Package/Case | VSON |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 4A |
| Output Type | Fixed |
| Packaging | Cut Tape |
| Quiescent Current | 35uA |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS61232DRCR Datasheet
Download the complete datasheet for Texas Instruments TPS61232DRCR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

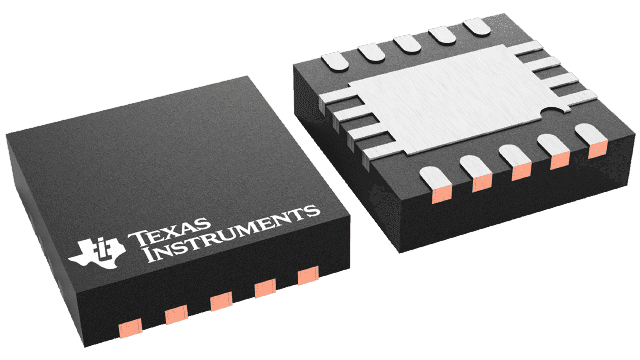

Product Images
