High efficiency synchronous step-up converter with a 5A switch, offering up to 96% efficiency. Features a 5V fixed output voltage and a maximum output current of 2.1A. Operates from a 2.3V to 5.5V input voltage range and supports a wide temperature range of -40°C to 85°C. This surface mountable VSON package component boasts a low quiescent current of 35µA and is RoHS compliant.
PackageVSON
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS61232DRCT technical specifications.
General
| Package/Case | VSON |
| Efficiency | 96% |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2.1A |
| Min Output Voltage | 5V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Operating Supply Current | 35uA |
| Operating Supply Voltage | 5.5V |
| Output Configuration | Positive |
| Output Current | 2.1A |
| Output Type | Fixed |
| Output Voltage | 5V |
| Package Quantity | 250 |
| Packaging | Cut Tape |
| Quiescent Current | 35uA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Topology | Boost |
| Weight | 0.000921oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS61232DRCT Datasheet
Download the complete datasheet for Texas Instruments TPS61232DRCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

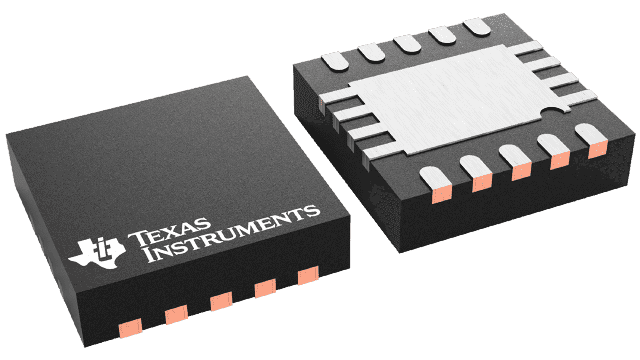

Product Images
