High-efficiency, 93% boost converter with a 5V fixed output voltage and 3.9A output current. Features a 3.5-MHz switching frequency and a 20µA quiescent current. Operates from a 2.65V to 4.85V input voltage range and supports a wide temperature range of -40°C to 85°C. Surface mountable in a compact WCSP package, this synchronous rectifier is RoHS compliant and lead-free.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS61253YFFR technical specifications.
General
| Efficiency | 93% |
| Lead Free | Lead Free |
| Max Input Voltage | 4.85V |
| Min Input Voltage | 2.65V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 3.9A |
| Output Type | Fixed |
| Output Voltage | 5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 20uA |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS61253YFFR Datasheet
Download the complete datasheet for Texas Instruments TPS61253YFFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

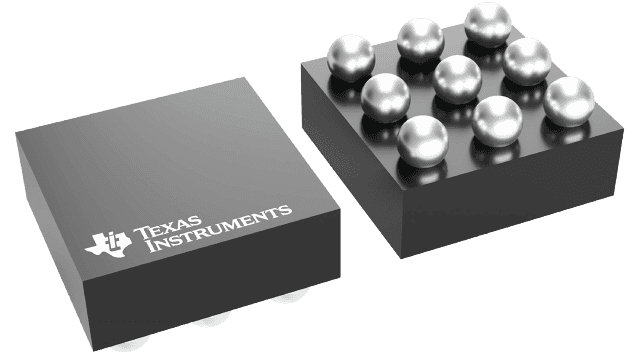

Product Images
