Texas Instruments
TPS61282AYFFR
TPS6128xA low Voltage 4A front end power management IC 16-DSBGA -40 to 85
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS61282AYFFR technical specifications.
General
| Efficiency | 95% |
| Lead Free | Lead Free |
| Max Input Voltage | 4.85V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 4A |
| Max Output Voltage | 4.4V |
| Min Output Voltage | 2.85V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 4.85V |
| Output Configuration | Positive |
| Output Current | 4A |
| Output Voltage | 4.4V |
| Packaging | Tape and Reel |
| Quiescent Current | 15uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS61282AYFFR Datasheet
Download the complete datasheet for Texas Instruments TPS61282AYFFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

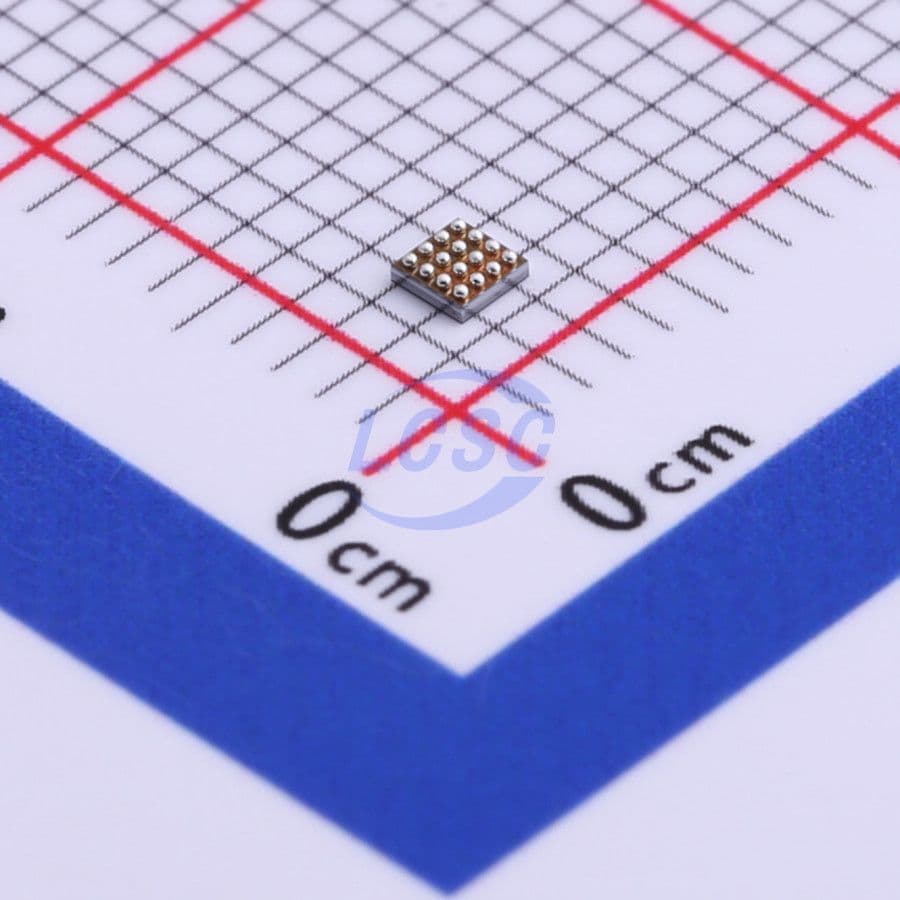

Product Images
