High-efficiency, 2A synchronous step-down DC/DC converter with adjustable output voltage from 800mV to 6V. Features a 3MHz switching frequency, 97% peak efficiency, and a low 18uA quiescent current. Operates from a 2.9V to 6V input voltage range with a maximum output current of 2A. Housed in a compact 2x2mm 8-WSON package, this lead-free and RoHS compliant component offers a wide operating temperature range of -40°C to 125°C.
Current18uA
Quick Jump:
Technical Specifications
Texas Instruments TPS62067DSGR technical specifications.
General
| Efficiency | 97% |
| Height | 800um |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.9V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Output Voltage | 6V |
| Min Output Voltage | 800mV |
| Min Supply Voltage | 2.9V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 6V |
| Output Configuration | Positive |
| Output Current | 2A |
| Output Type | Adjustable |
| Output Voltage | 6V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 18uA |
| RoHS Compliant | Yes |
| Supply Current | 18uA |
| Synchronous Rectifier | Yes |
| Thickness | 750um |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS62067DSGR Datasheet
Download the complete datasheet for Texas Instruments TPS62067DSGR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

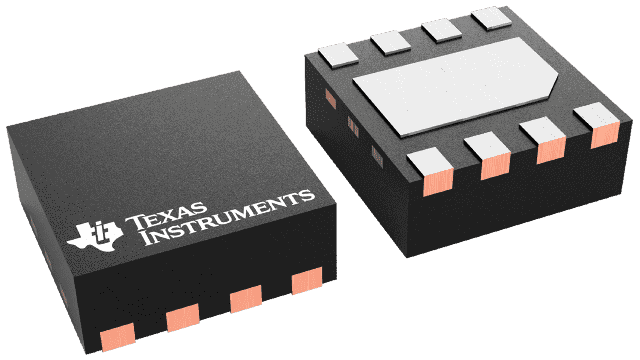

Product Images
