1.5A, 3.3V fixed output step-down converter with 92% efficiency. Features a 3.1V to 17V input voltage range and a 20µA quiescent current. Operates from -40°C to 85°C in a 16-pin VQFN EP package. This synchronous rectifier offers a single positive output and is RoHS compliant.
PackageVQFN EP
Current20uA
Quick Jump:
Technical Specifications
Texas Instruments TPS62111RSAR technical specifications.
General
Package/Case
VQFN EP
Efficiency
92%
Lead Free
Lead Free
Max Input Voltage
17V
Min Input Voltage
3.1V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Voltage
3.3V
Min Output Voltage
3.3V
Min Supply Voltage
3.1V
Number of Outputs
1
Operating Supply Voltage
17V
Output Configuration
Positive
Output Current
1.5A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
20uA
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
20uA
Synchronous Rectifier
Yes
Weight
0.001623oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS62111RSAR Datasheet
Download the complete datasheet for Texas Instruments TPS62111RSAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

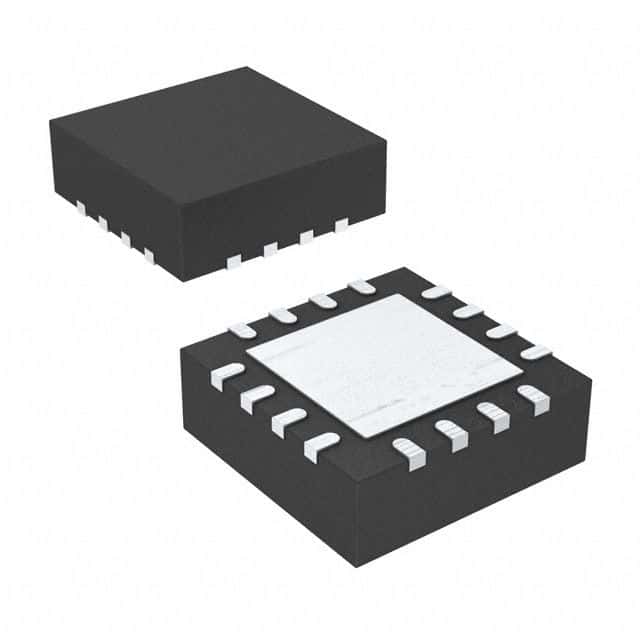

Product Images
