3A step-down converter, featuring DCS-Control™ technology, operates from a 3V to 17V input range with a 3A maximum output current. This integrated circuit offers an adjustable output voltage from 900mV up to 6V. Designed for surface mounting, it is housed in a compact 3x3mm 16-VQFN package with a low profile of 0.95mm. The device boasts a quiescent current of 17µA and a wide operating temperature range of -40°C to 125°C, with RoHS compliance.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS62130ARGTT technical specifications.
General
Package/Case
QFN
Height
0.95mm
Lead Free
Lead Free
Length
3.15mm
Max Input Voltage
17V
Min Input Voltage
3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
6V
Min Output Voltage
900mV
Min Supply Voltage
3V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
17V
Output Configuration
Positive
Output Current
3A
Output Type
Adjustable
Output Voltage
6V
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
17uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DCS-Control™
Synchronous Rectifier
Yes
Width
3.15mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS62130ARGTT Datasheet
Download the complete datasheet for Texas Instruments TPS62130ARGTT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

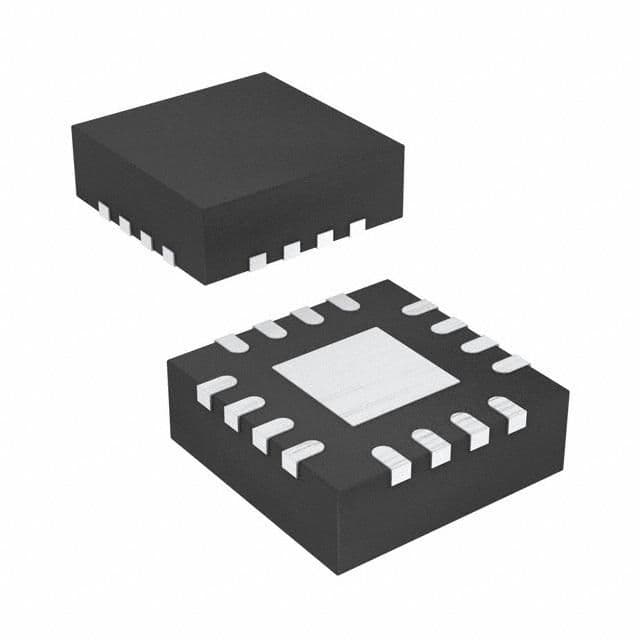

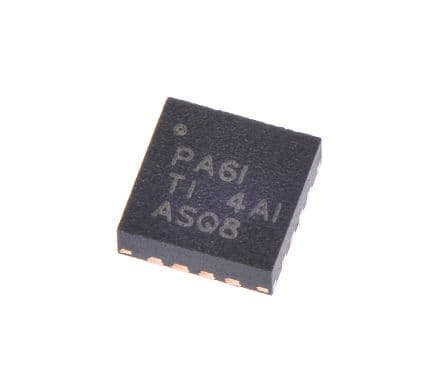

Product Images
