3A step-down converter featuring DCS-Control™ technology, operating from a 3V to 17V input range. This positive output regulator offers adjustable output voltage from 900mV up to 6V, with a maximum output current of 3A. The device boasts a low quiescent current of 17µA and a synchronous rectifier for enhanced efficiency. Encased in a compact 3x3mm QFN package, it operates across a wide temperature range of -40°C to 125°C.
PackageQFN
Quick Jump:
Technical Specifications
Texas Instruments TPS62130RGTT technical specifications.
General
Package/Case
QFN
Height
0.95mm
Lead Free
Lead Free
Length
3.15mm
Max Input Voltage
17V
Min Input Voltage
3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
6V
Min Output Voltage
900mV
Number of Outputs
1
Operating Supply Voltage
17V
Output Configuration
Positive
Output Current
3A
Output Type
Adjustable
Output Voltage
6V
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
17uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DCS-Control™
Synchronous Rectifier
Yes
Thickness
900um
Width
3.15mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS62130RGTT Datasheet
Download the complete datasheet for Texas Instruments TPS62130RGTT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

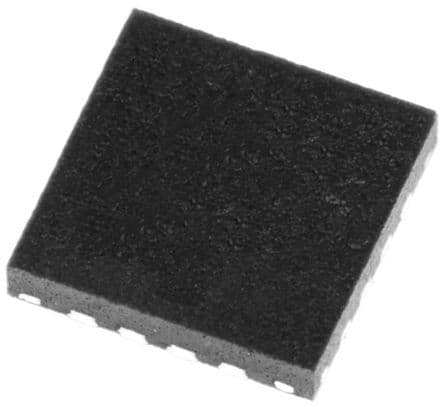

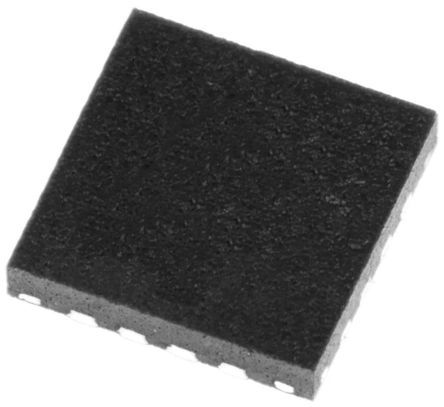

Product Images
