Step-down converter, featuring DCS-Control™ technology, operates from a 3V to 17V input range, delivering up to 500mA output current. This power management IC offers an adjustable output voltage from 900mV to 6V. With a quiescent current of 17µA and synchronous rectification, it is designed for efficient power conversion. The component is housed in a compact 2x2 QFN package, measuring 2.1mm in length and 2.1mm in width with a height of 0.75mm. Operating across a temperature range of -40°C to 125°C, it is RoHS compliant and supplied on tape and reel.
Quick Jump:
Technical Specifications
Texas Instruments TPS62170DSGT technical specifications.
General
Height
0.75mm
Lead Free
Lead Free
Length
2.1mm
Max Input Voltage
17V
Min Input Voltage
3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Output Voltage
6V
Min Output Voltage
900mV
Number of Outputs
1
Operating Supply Voltage
17V
Output Current
500mA
Output Type
Adjustable
Output Voltage
6V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
17uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DCS-Control™
Synchronous Rectifier
Yes
Thickness
750um
Width
2.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS62170DSGT Datasheet
Download the complete datasheet for Texas Instruments TPS62170DSGT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

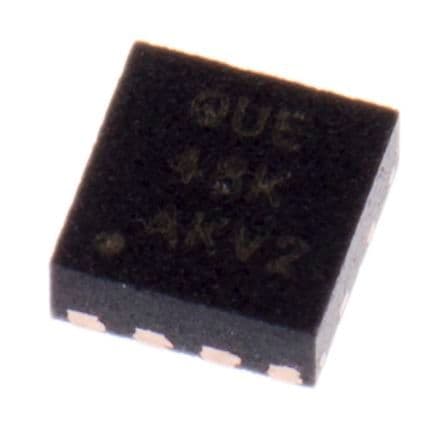

Product Images
