1A synchronous step-down converter operating at 2.5MHz, featuring an adjustable output voltage from 600mV to 6V. This power management IC supports input voltages from 2.3V to 6V and delivers up to 1A output current. Housed in a compact 2x2mm SON package with SMD/SMT termination, it offers a low quiescent current of 15µA. The device operates across a temperature range of -40°C to 85°C and is RoHS compliant.
Frequency2.5MHz
PackageSON
Quick Jump:
Technical Specifications
Texas Instruments TPS62290DRVT technical specifications.
General
Package/Case
SON
Frequency
2.5MHz
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
6V
Min Output Voltage
600mV
Max Supply Voltage
6V
Min Supply Voltage
2.3V
Number of Outputs
1
Output Current
1A
Output Type
Adjustable
Output Voltage
6V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
15uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Termination
SMD/SMT
Weight
0.000342oz
Width
2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS62290DRVT Datasheet
Download the complete datasheet for Texas Instruments TPS62290DRVT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

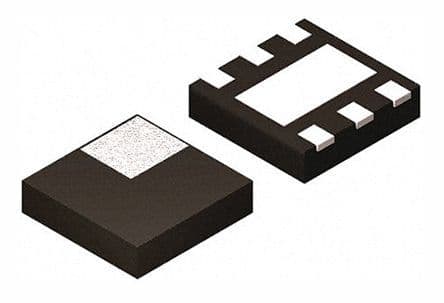

Product Images
