Adjustable step-down converter, 500mA output current, 3MHz switching frequency. Features 93% efficiency and a wide input voltage range of 2.7V to 6V. Operates from -40°C to 85°C with a quiescent current of 86µA. This surface mount device offers a positive, adjustable output voltage up to 5.4V and includes a synchronous rectifier. Packaged in a compact 2.3mm x 1.3mm x 0.65mm QFN 8-DSBGA.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS62300YZDT technical specifications.
General
| Efficiency | 93% |
| Height | 0.65mm |
| Lead Free | Contains Lead |
| Length | 2.3mm |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Voltage | 5.4V |
| Min Output Voltage | 600mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 6V |
| Output Configuration | Positive |
| Output Current | 500mA |
| Output Type | Adjustable |
| Output Voltage | 5.4V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Quiescent Current | 86uA |
| RoHS Compliant | Yes |
| Series | TPS62300 |
| Synchronous Rectifier | Yes |
| Width | 1.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS62300YZDT Datasheet
Download the complete datasheet for Texas Instruments TPS62300YZDT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

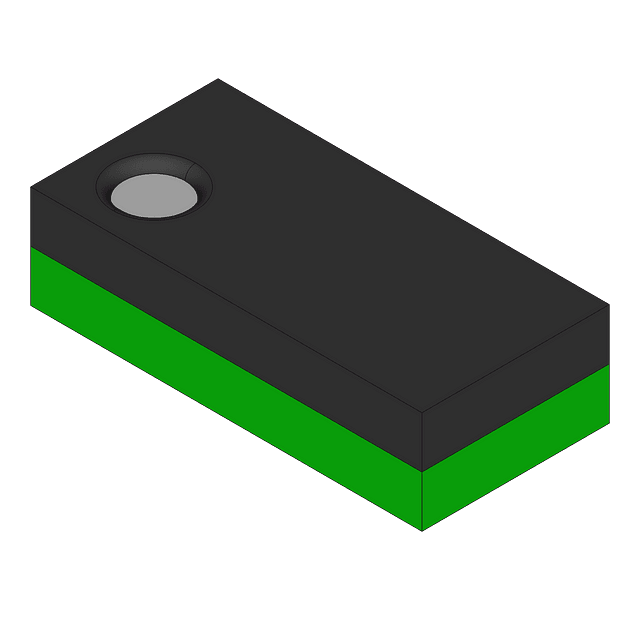

Product Images
