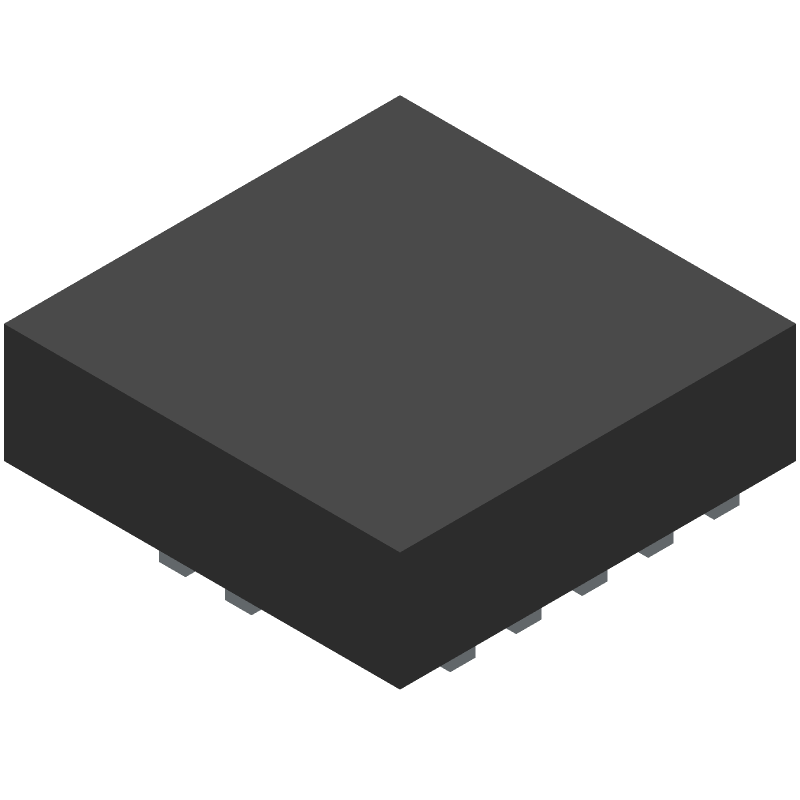

High-efficiency, 1.5A adjustable buck converter with 96% peak efficiency, operating from 1.8V to 3.8V input. Features a 1.5A maximum output current and adjustable output voltage from 600mV to 3.8V. This positive output regulator is housed in a 3mm VSON package, offering a wide operating temperature range of -40°C to 85°C. Includes synchronous rectification and a low 18µA quiescent current.
PackageVSON
Quick Jump:
Technical Specifications
Texas Instruments TPS62510DRCT technical specifications.
General
Package/Case
VSON
Efficiency
96%
Lead Free
Lead Free
Max Input Voltage
3.8V
Min Input Voltage
1.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Voltage
3.8V
Min Output Voltage
600mV
Number of Outputs
1
Output Configuration
Positive
Output Current
1.5A
Output Type
Adjustable
Output Voltage
3.8V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
18uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Weight
0.000885oz
Width
3mm
Compliance
RoHS
Compliant
