High-efficiency 96% buck-boost converter with 1.2A maximum output current. Features a fixed 5V output voltage and operates at a 1.5MHz switching frequency. Input voltage range is 1.8V to 5.5V, with a low quiescent current of 30uA. Packaged in a 3x3 SON for surface-mount termination. RoHS compliant and suitable for operation from -40°C to 85°C.
Frequency1.5MHz
PackageSON
Quick Jump:
Technical Specifications
Texas Instruments TPS63002DRCT technical specifications.
General
Package/Case
SON
Efficiency
96%
Frequency
1.5MHz
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
1.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.2A
Max Output Voltage
5V
Min Output Voltage
5V
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Nominal Output Voltage
5V
Number of Outputs
1
Output Configuration
Positive
Output Current
1.2A
Output Type
Fixed
Output Voltage
5V
Packaging
Tape and Reel
Quiescent Current
30uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Termination
SMD/SMT
Topology
Buck-Boost
Weight
0.000921oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS63002DRCT Datasheet
Download the complete datasheet for Texas Instruments TPS63002DRCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

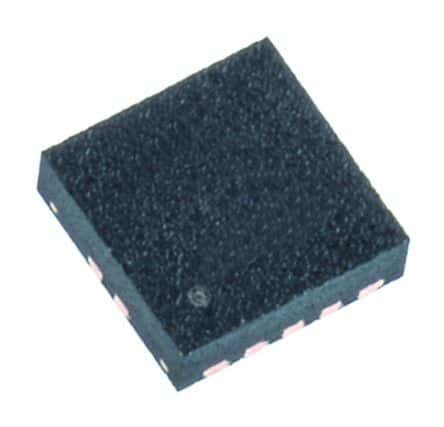

Product Images
