High efficiency single inductor buck-boost converter, featuring 96% peak efficiency and a 4A switch. This power management IC supports adjustable output voltages from 1.2V to 5.5V with a maximum output current of 3A. Operating across an input voltage range of 1.8V to 5.5V, it offers a 100% maximum duty cycle and a low quiescent current of 50µA. Packaged in a compact 3mm x 4mm x 1mm VSON surface mount package, this RoHS compliant component is ideal for space-constrained applications.
PackageVSON
Current50uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS63020DSJR technical specifications.
General
Package/Case
VSON
Efficiency
96%
Height
1mm
Lead Free
Lead Free
Length
3mm
Max Duty Cycle
100%
Max Input Voltage
5.5V
Min Input Voltage
1.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
5.5V
Min Output Voltage
1.2V
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Channels
1
Number of Outputs
1
Operating Supply Voltage
5.5V
Output Configuration
Positive
Output Current
3A
Output Type
Adjustable
Output Voltage
5.5V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
50uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
50uA
Synchronous Rectifier
Yes
Thickness
900um
Topology
Buck-Boost
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS63020DSJR Datasheet
Download the complete datasheet for Texas Instruments TPS63020DSJR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

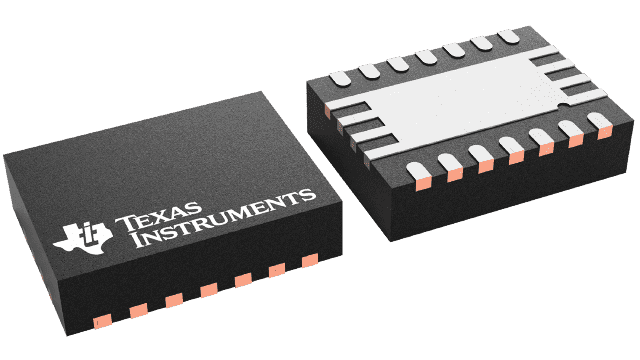

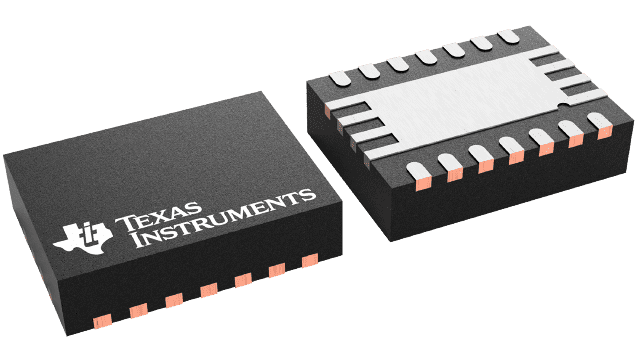

Product Images
