High-efficiency, single-inductor buck-boost converter with 800mA maximum output current. Features a 3.3V fixed output voltage and operates from 1.8V to 5.5V input voltage. Achieves up to 96% efficiency with a low 25uA quiescent current. Surface mountable in a 10-SON package, this RoHS compliant component offers a wide operating temperature range of -40°C to 85°C.
PackageSON
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS63031DSKT technical specifications.
General
Package/Case
SON
Efficiency
96%
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
1.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
800mA
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Channels
1
Number of Outputs
1
Operating Supply Voltage
5.5V
Output Configuration
Positive
Output Current
800mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
25uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Thickness
750um
Topology
Buck-Boost
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS63031DSKT Datasheet
Download the complete datasheet for Texas Instruments TPS63031DSKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

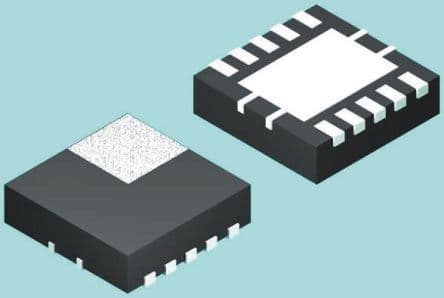

Product Images
