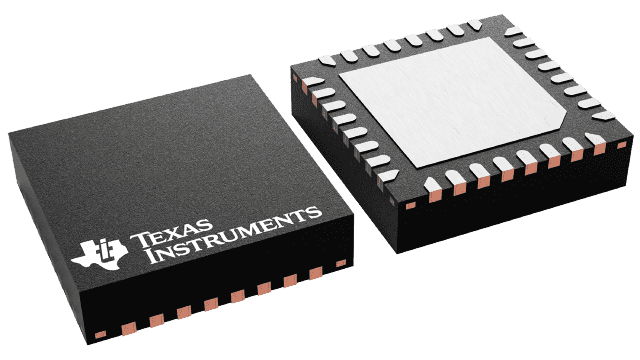

Power Management IC (PMIC) featuring two DC/DC converters and four LDOs, housed in a 32-VQFN package with dimensions of 4mm length and 0.9mm height. Operates from a 2.5V to 6V input voltage range with a maximum output current of 600mA and output voltage up to 2.5V. Offers a total of six outputs, a 2.25MHz switching frequency, and a 100% maximum duty cycle. This lead-free, RoHS compliant component has a quiescent current of 2.4mA and an operating supply current of 20µA, suitable for operation between -40°C and 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TPS65050RSMT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | VQFN EP |
| Frequency | 2.25MHz |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Duty Cycle | 100% |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 600mA |
| Max Output Voltage | 2.5V |
| Min Output Voltage | 600mV |
| Number of Outputs | 6 |
| Operating Supply Current | 20uA |
| Operating Supply Voltage | 5.8V |
| Output Current | 600mA |
| Output Voltage | 2.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 2.4mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Weight | 0.00157oz |
| RoHS | Compliant |
